2013 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE

MT Gear Shift Cable: Removal

  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Remove the center exhaust pipe. Refer to REMOVAL .
  4. Remove the heat shield cover.
    Fig 1: Identifying Heat Shield Cover
    G08578445Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clamp cable and take out the MT gear shift cable from the clamp.

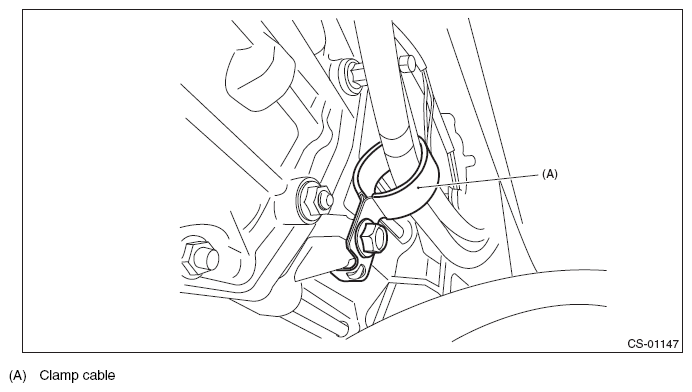

    Fig 2: Identifying Clamp Cable
    G08578462Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the dust cover from transmission body. (OUTBACK model)

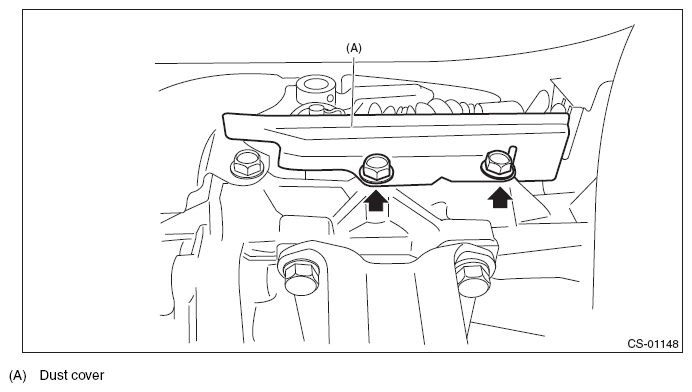

    Fig 3: Removing Dust Cover From Transmission Body (Outback Model)
    G08578463Courtesy of SUBARU OF AMERICA, INC.
  7. Apply a mark on the top end of the MT gear shift cable.
  8. Remove the snap pin from the shift lever COMPL.

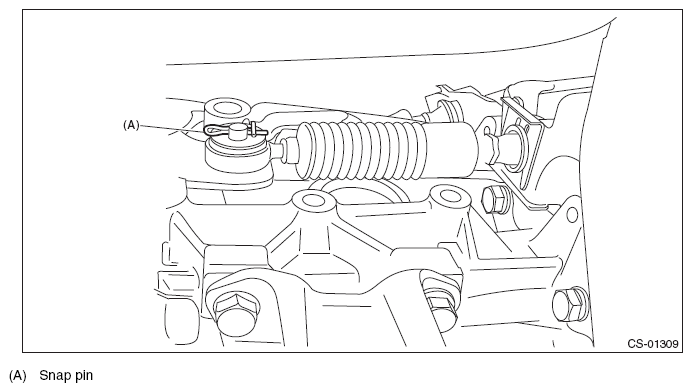

    Fig 4: Identifying Shift Lever COMPL Snap Pin
    G08578464Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the shift bracket and MT gear shift cable as a single unit from the transmission body.
    Fig 5: Locating MT Gear Shift Cable Mounting Bolts
    G08578465Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the plate cable assembly.
    Fig 6: Locating Plate Cable Assembly Mounting Bolts
    G06651768Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.
    CAUTION: Be careful not to deform the cable inner.
