2013 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE

MT Gear Select Cable: Removal

CAUTION: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct. Refer to REMOVAL .
  3. Remove the ten clips and remove the grille bracket.

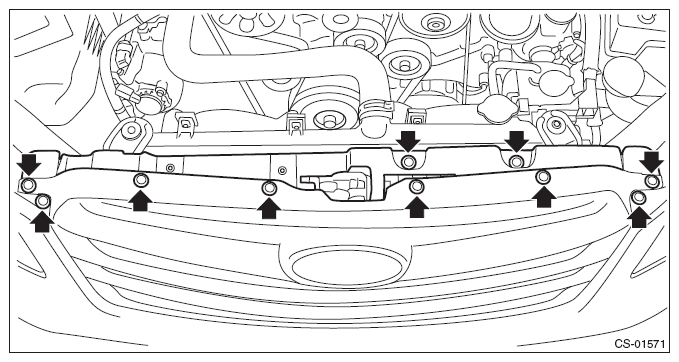

    Fig 1: Locating Grille Bracket Mounting Clips
    G08578478Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the radiator sub fan and fan motor. Refer to REMOVAL .
  5. Remove the air intake boot assembly. Refer to REMOVAL .
  6. Remove the throttle body. Refer to REMOVAL .
  7. Remove the bolt and disconnect the engine harness connector.

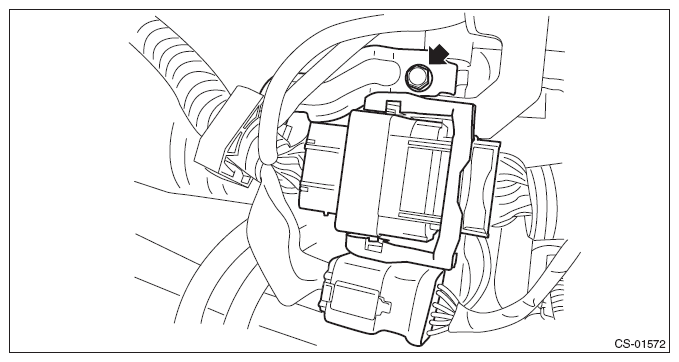

    Fig 2: Locating Engine Harness Connector Mounting Bolt
    G08578479Courtesy of SUBARU OF AMERICA, INC.
  8. Lift up the vehicle.
  9. Remove the center exhaust pipe. Refer to REMOVAL .
  10. Remove the heat shield cover.

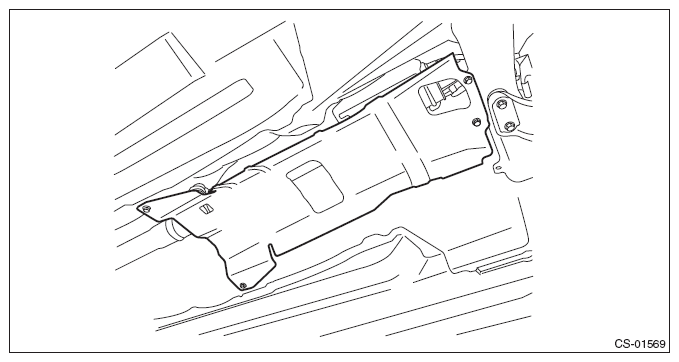

    Fig 3: Identifying Heat Shield Cover
    G08578445Courtesy of SUBARU OF AMERICA, INC.
  11. Lower the vehicle.
  12. Remove the nuts from left and right transmission mounting brackets.

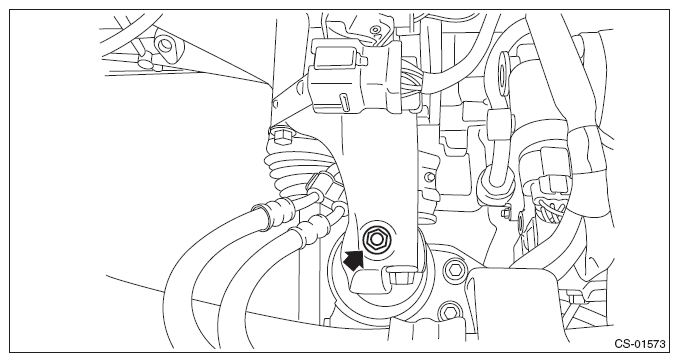

    Fig 4: Locating Left And Right Transmission Mounting Bracket Nuts
    G08578481Courtesy of SUBARU OF AMERICA, INC.
  13. Set the ST1 and ST2 to vehicle.

    ST1 99099AJ000 ENGINE HANGER

    ST2 99099AJ010 CHAIN BALANCER

    CAUTION:
    • Set so that the chain sling does not hit the engine parts.
    • Set the arms of ST (ENGINE HANGER) at the locations shown in the figure.
