Front Disc Brake Assembly: Disassembly
- Remove mud and foreign matter from the caliper body and the support.CAUTION:
Be careful not to allow foreign matter to enter the brake hose connector.

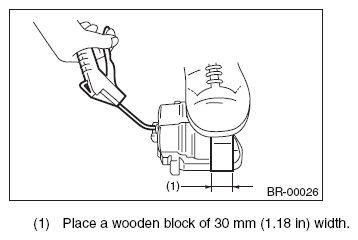

- Place a wooden block in the caliper body as shown in the figure to prevent the piston from jumping out and being damaged.
- Gradually apply compressed air via the brake hose installation hole to push the piston out.
- Remove the piston boot.
- Remove the piston seal (1) from the caliper body cylinder.CAUTION:
Do not damage the cylinder and piston seal groove.
