2013 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE

Differential Case Assembly

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the taper roller bearing using the ST and a press.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing Using Special Tool And Press
Courtesy of SUBARU OF AMERICA, INC.

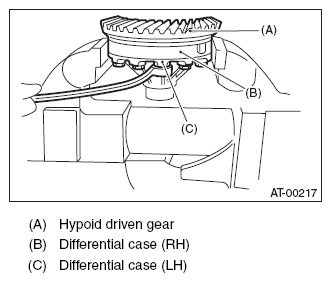

Secure the case in a vise, remove the hypoid driven gear tightening bolts, and then separate the hypoid driven gear into differential case (RH) and differential case (LH).

Fig 2: Identifying Hypoid Driven Gear And Differential Case (RH And LH)
Courtesy of SUBARU OF AMERICA, INC.

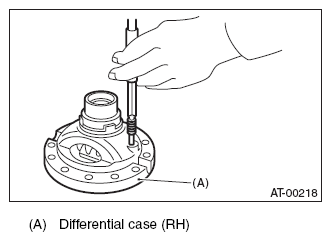

Pull out the straight pin and pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

Fig 3: Pulling Out Straight Pin And Pinion Shaft From Differential Case (RH)
Courtesy of SUBARU OF AMERICA, INC.
