2013 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
MT Gear Shift Lever: Inspection
- Check the parts for deformation, damage and wear. Repair or replace if necessary. Compare the removed parts with new parts to confirm if there are damages or not.

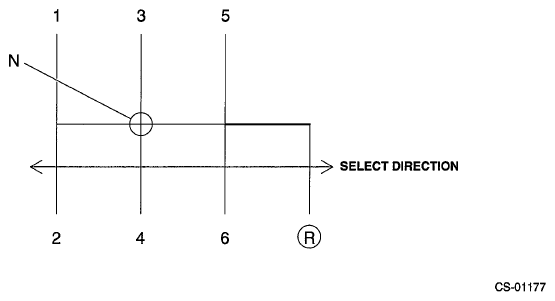

- Check that selecting to the reverse direction is disable unless the slider is pulled up.
- Check that selecting to the reverse direction is possible when the slider is pulled up to the full.
- Check that the shift lever moves to initial position, when the slider backs to the neutral position from step 3).
