Select Cable: Adjustment
- Shift the select lever to "N" range.
- Lift up the vehicle.
- Remove the front exhaust pipe and rear exhaust pipe.
- Remove the heat shield cover.

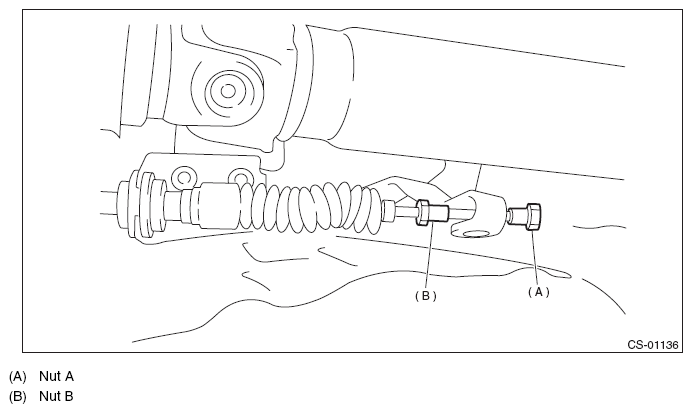

- Loosen the nuts on both sides.

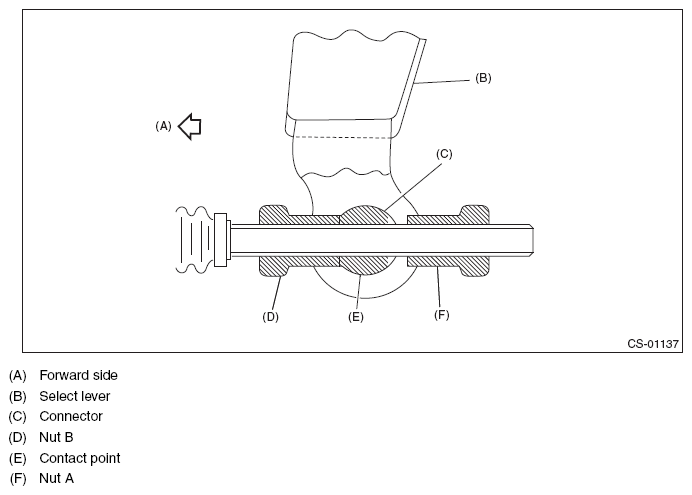

- Turn the nut B until it lightly touches the connector.

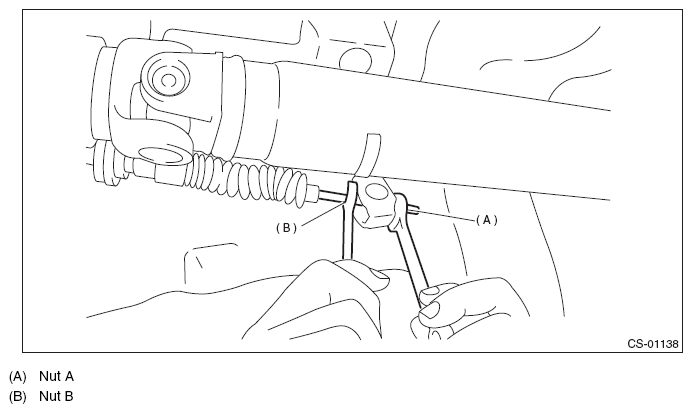

- Set a spanner wrench to the nut B so that it does not rotate, and then tighten the nut A.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- After the completion of adjustment, confirm that the select lever operates normally at all ranges.
- Install in the reverse order of removal.
