2013 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Transmission Case: Disassembly

  1. Remove the oil stopper plate.

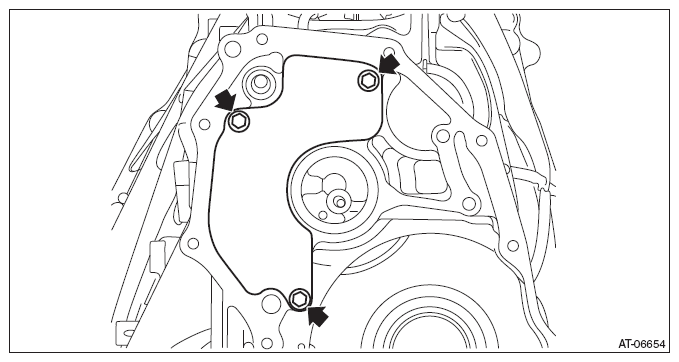

    Fig 1: Locating Oil Stopper Plate Mounting Bolts
    G08317966Courtesy of SUBARU OF AMERICA, INC.
  2. Remove all plugs from the transmission case.

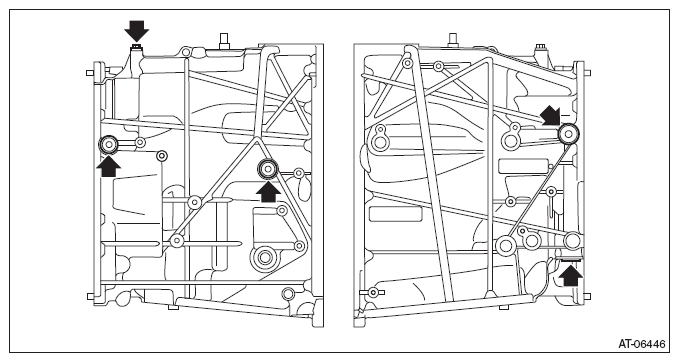

    Fig 2: Locating Transmission Case Plugs
    G08317967Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil seal using a screwdriver wrapped with cloth etc.

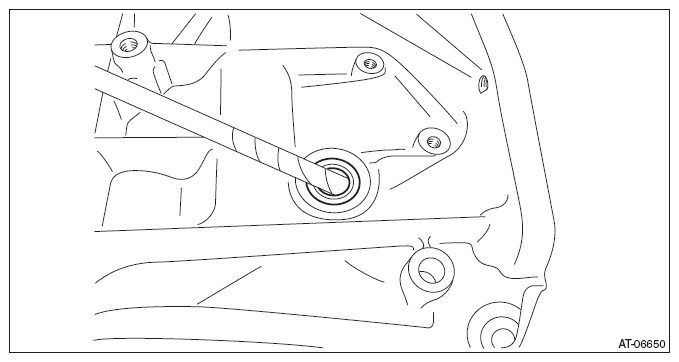

    Fig 3: Removing Oil Seal Using Screwdriver Wrapped With Cloth
    G08317968Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the CVTF filter cover and gasket.

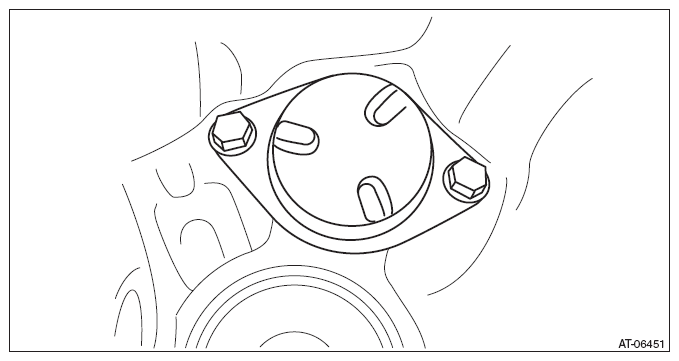

    Fig 4: Identifying CVTF Filter Cover And Gasket
    G08317973Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the CVTF filter.

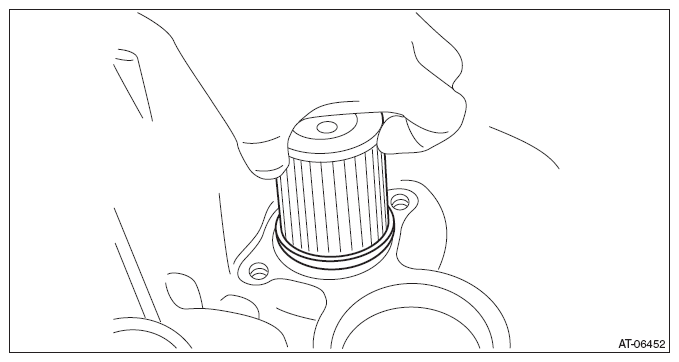

    Fig 5: Removing/Installing CVTF Filter
    G08317974Courtesy of SUBARU OF AMERICA, INC.
