Reverse Brake Assembly: Disassembly

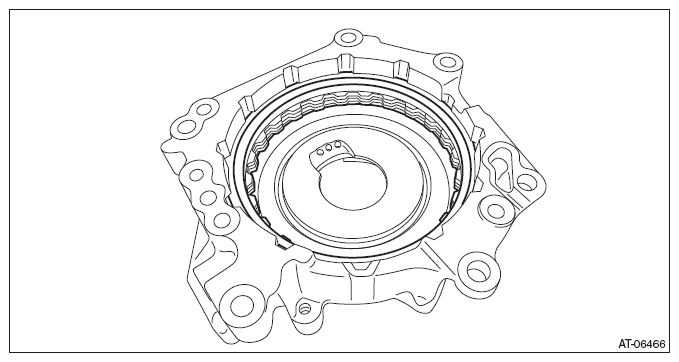

- Remove the snap ring.
- Remove the retaining plate, drive plate, driven plate and dish plate.

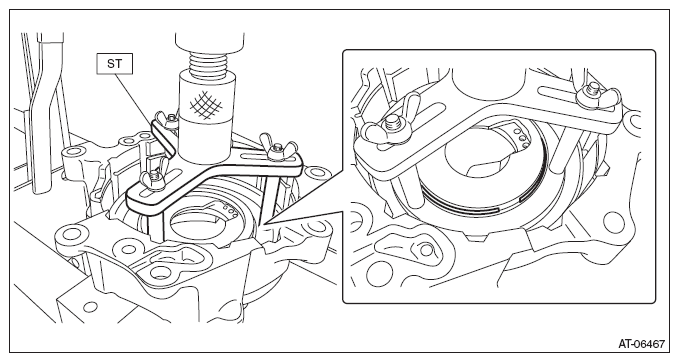

- Compress the return spring using the ST to remove the snap ring.
ST 18762AA000 COMPRESSOR SPECIAL TOOL
- Using the ST, remove the snap ring and spring retainer.

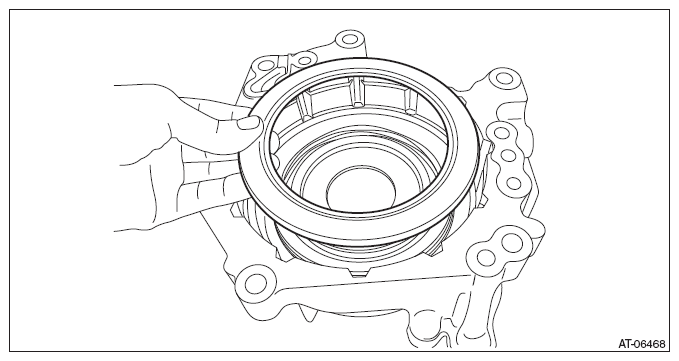

- Remove the return spring.

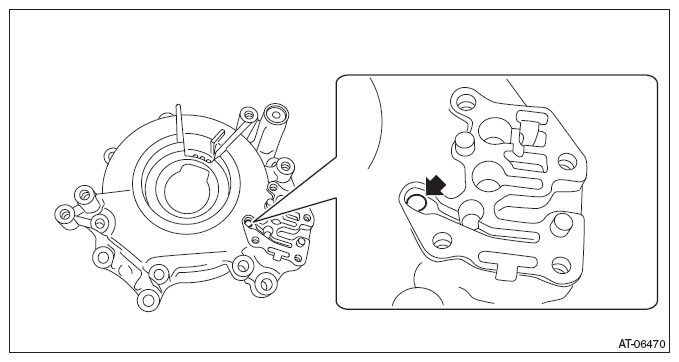

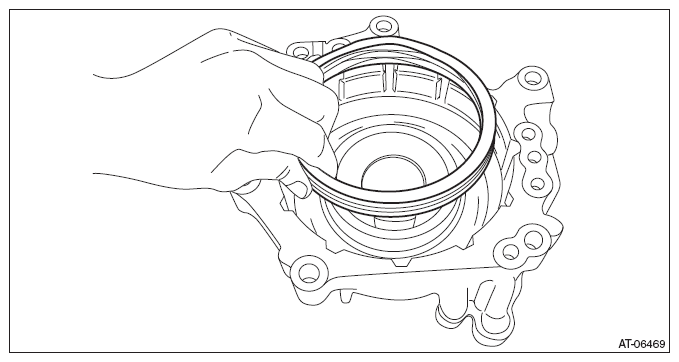

- Remove the reverse brake piston by blowing compressed air intermittently from reverse brake housing hole.
