Primary Speed Sensor: Inspection
- Remove the instrument panel lower cover. Refer to REMOVAL .

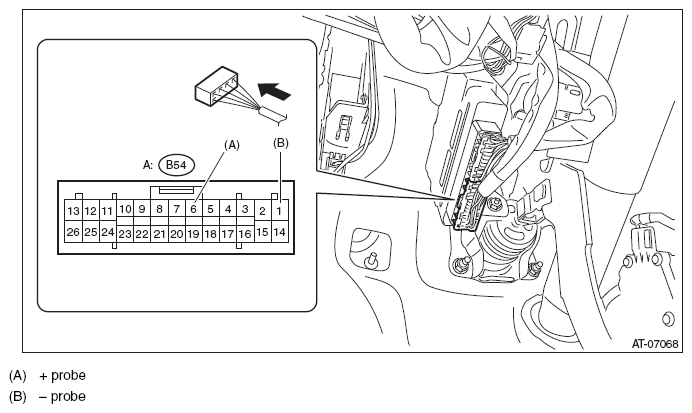

- Set the probe of oscilloscope to TCM harness connector.
Connector & terminal
(B54) No. 6 (+) - No. 1 (-):
- Start and warm up the engine.
- Lift up the vehicle.CAUTION: Lift up the vehicle until the tire bottom is 0.3 m (0.98 ft) or more above the ground.
- Shift the select lever to "D" range.

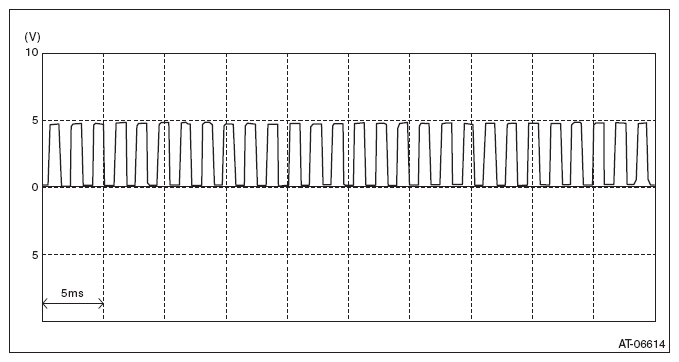

- Check the waveform of primary speed sensor with engine idling running.
