2013 Subaru Outback Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Drive Plate: Removal
- Remove the transmission assembly from the vehicle. Refer to REMOVAL .

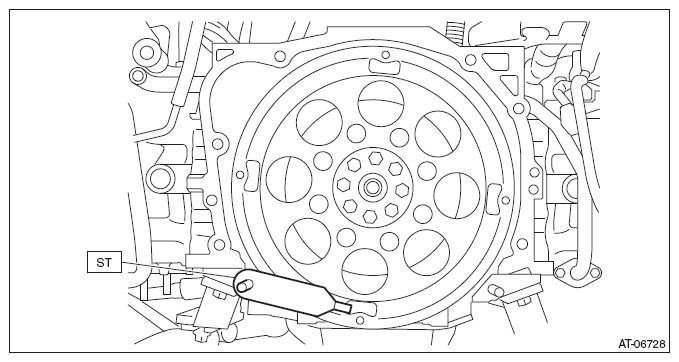

- Set the ST.
ST 498497300 CRANKSHAFT STOPPER
- Remove the drive plate and reinforcement drive plate.
