Automatic Transmission Assembly: Installation

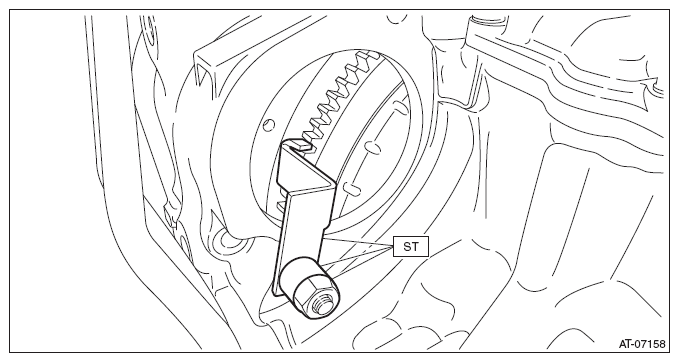

- Attach the ST to converter case.
ST 498277200 STOPPER SET
- Replace the front differential side retainer oil seal. Refer to
REPLACEMENT .NOTE:
- Be sure to replace the differential side retainer oil seal with a new part whenever the front drive shaft is removed from the transmission.
- When a new differential side retainer oil seal has been installed, replacement is not required.

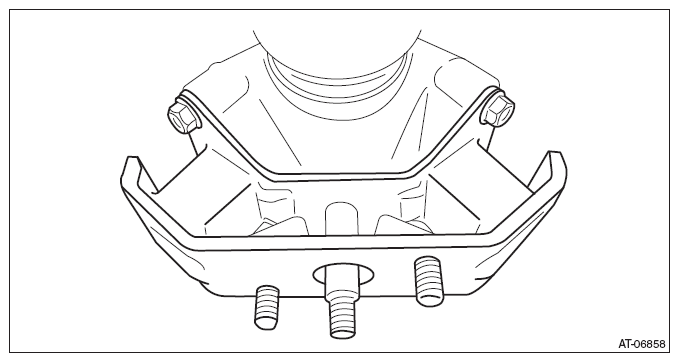

- Install the cushion rubber on the transmission.
Tightening torque:
40 N.m (4.1 kgf-m, 29.5 ft-lb)
- Mount the transmission onto the transmission jack.
- Strike and bend the transmission hanger of transmission rear with a soft rubber hammer etc. so that it gets in contact with the transmission case.CAUTION: Do not apply extra overload or impact to the transmission case.
