2013 Subaru Forester XT TouringFACTORY OEM SERVICE PROCEDURE
Tumble Generator Valve Assembly: Removal
- Release the fuel pressure. < Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
- Remove the collector cover.
- Disconnect the ground cable from battery.
- Open the fuel filler lid and remove the fuel filler cap.
- Remove the intake manifold. < Refer to REMOVAL , Intake Manifold. >

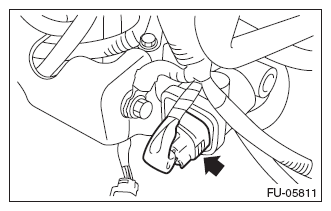

- Disconnect the connector from the tumble generator valve assembly.
- Remove the fuel injector. < Refer to REMOVAL , Fuel Injector. >
- Remove the tumble generator valve assembly from the intake manifold.
