2013 Subaru Forester XT TouringFACTORY OEM SERVICE PROCEDURE

Throttle Body: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
    Fig 1: Disconnecting/Connecting Battery Ground Cable
    G06336085Courtesy of SUBARU OF AMERICA, INC.
  3. Lift up the vehicle.
  4. Remove the under cover. < Refer to REMOVAL , Front Under Cover. >
  5. Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. < Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  6. Remove the intercooler. < Refer to REMOVAL , Intercooler. >
  7. Disconnect the connectors from the throttle position sensor.

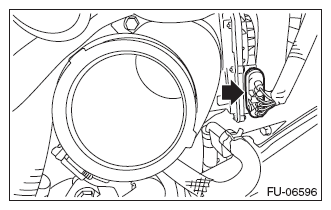

    Fig 2: Locating Throttle Position Sensor Connector
    G08570645Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the brake booster vacuum hose from the clip (A), and remove the bolts securing the air bypass pipe to the intake manifold.
    Fig 3: Locating Air Bypass Pipe Mounting Bolt
    G08570646Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the bolts securing the PCV pipe assembly to the intake manifold, and remove the intake duct from the throttle body.
    Fig 4: Locating PCV Pipe Assembly To Intake Manifold Bolts
    G08539752Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the engine coolant hose from throttle body.
    Fig 5: Locating Engine Coolant Hose Clamps
    G08539753Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the throttle body from the intake manifold.

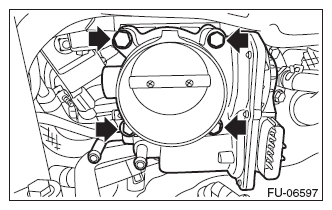

    Fig 6: Locating Throttle Body Mounting Bolts
    G08570649Courtesy of SUBARU OF AMERICA, INC.
