2013 Subaru Forester XT TouringFACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM): Removal

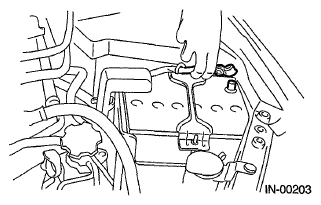

- Disconnect the ground cable from battery.
- Remove the glove box lower cover. < Refer to REMOVAL , Glove Box. >
- Remove the lower inner trim of passenger's side. < Refer to REMOVAL , Lower Inner Trim. >
- Turn over the floor mat of passenger's seat.
- Remove the protect cover.
- Remove the nuts and bolts which hold the ECM to the bracket.
- Disconnect the ECM connectors, and take out the ECM.
