Select Lever: Installation
- Set the select lever to vehicle body.
- Tighten the four bolts to install the select lever to vehicle body, and then connect the connector.

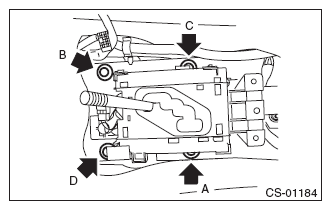

- Temporarily tighten the bolt A.
- Tighten the bolt B.
- Tighten the bolt A.
- Tighten the bolts C and D.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the harness clips to the bracket.
- Shift the select lever to "N" range.
- Install the blind.CAUTION: The blind should be installed so that it is securely caught by tabs of the plate guide COMPL.
