2013 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE

Select Lever: Disassembly

  1. Remove the gasket and plate COMPL.
    Fig 1: Identifying Gasket And Plate COMPL
    G05661193Courtesy of SUBARU OF AMERICA, INC.
  2. Insert a flat tip screwdriver with a thin tip under the connector and disconnect each connector from the plate COMPL.
    Fig 2: Inserting Flat Tip Screwdriver With Thin Tip Under Connector
    G05661194Courtesy of SUBARU OF AMERICA, INC.

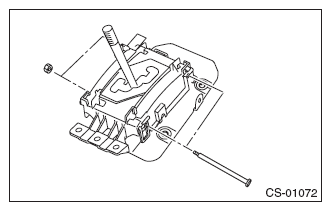

  3. Remove the spacer bolt and remove the plate guide COMPL.
    Fig 3: Identifying Spacer Bolt And Plate Guide COMPL
    G08571445Courtesy of SUBARU OF AMERICA, INC.

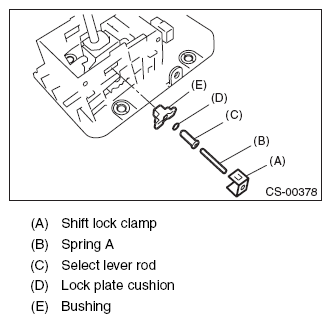

  4. Remove the shift lock clamp, spring A, select lever rod, lock plate cushion, and bushing.
    Fig 4: Identifying Shift Lock Clamp, Spring, Select Lever Rod, Lock Plate Cushion, And Bushing
    G08571446Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the detent spring.
    Fig 5: Identifying Detent Spring
    G05661198Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the solenoid unit.
    Fig 6: Removing Shift Lock Solenoid Unit
    G05661200Courtesy of SUBARU OF AMERICA, INC.
  7. Raise the claw of connector.
    Fig 7: Raising Claw Of Connector
    G05019677Courtesy of SUBARU OF AMERICA, INC.

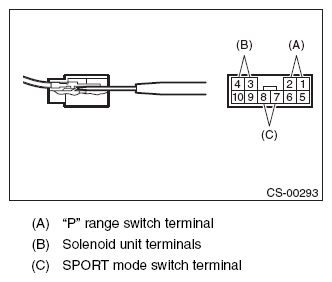

  8. Disconnect the terminals of the SPORT mode switch, "P" range switch, and solenoid unit from the connector, using a flat tip screwdriver with a thin tip.
    Fig 8: Identifying P Range Switch Terminal, Solenoid Unit Terminals And Sport Mode Switch Terminal
    G08571450Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the grommet.
    Fig 9: Identifying Grommet
    G05661203Courtesy of SUBARU OF AMERICA, INC.
  10. Pull out the spring pin.
    Fig 10: Pulling Out Spring Pin
    G05661204Courtesy of SUBARU OF AMERICA, INC.

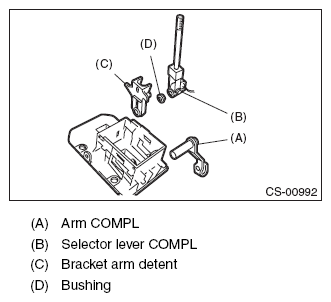

  11. Pull out the arm COMPL, remove the select lever COMPL, and remove the bracket arm detent and bushing.
    Fig 11: Identifying Arm COMPL, Select Lever COMPL, Bracket Arm Detent And Bushing
    G08571453Courtesy of SUBARU OF AMERICA, INC.

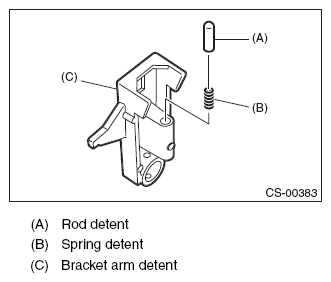

  12. Remove the rod detent and spring detent from the bracket arm detent.
    Fig 12: Identifying Rod Detent, Spring Detent And Bracket Arm Detent
    G08571454Courtesy of SUBARU OF AMERICA, INC.
