2013 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the front exhaust pipe. (non-turbo model) < Refer to REMOVAL , Front Exhaust Pipe. >
  5. Remove the center exhaust pipe (rear). (turbo model) < Refer to REMOVAL , Center Exhaust Pipe. >
  6. Remove the heat shield cover.
    Fig 1: Identifying Heat Shield Cover
    G05661183Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the snap pin and washer from the shifter arm.

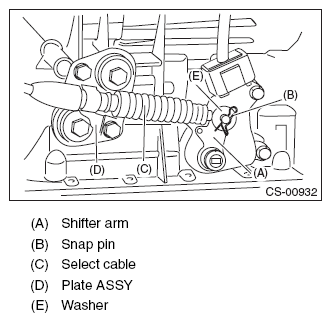

    Fig 2: Identifying Shifter Arm, Snap Pin, Select Cable, Plate Assembly And Washer
    G08571458Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the plate assembly from the transmission case.

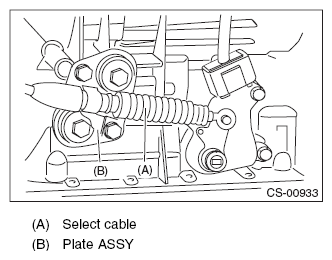

    Fig 3: Identifying Select Cable And Plate Assembly
    G08571459Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the cable from arm COMPL.

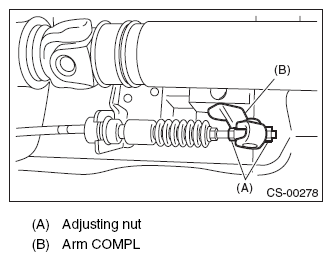

    Fig 4: Disconnecting Cable From Arm COMPL
    G08571460Courtesy of SUBARU OF AMERICA, INC.
  10. Raise the claw of clamp to remove the cable from bracket.

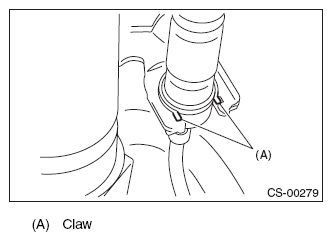

    Fig 5: Identifying Cable Claw
    G08571461Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
