Turbo Model
- Replace the differential side oil seal with a new part. < Refer to
DIFFERENTIAL SIDE RETAINER OIL SEAL . >NOTE: When a new oil seal has been installed, replacement is not required.
- Install the rear cushion rubber to the transmission assembly.
Tightening torque:
40 N.m (4.1 kgf-m, 29.5 ft-lb)

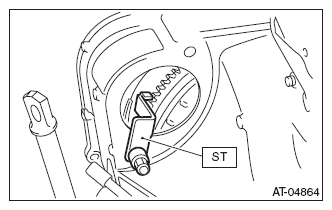

- Attach the ST to the converter case.
ST 498277200 STOPPER SET
- Strike and bend the transmission hanger of transmission rear with a rubber hammer etc. so that it gets in contact with the transmission case.CAUTION: Do not apply excessive load or impact to the transmission case.
