Diagnostic Procedure
- Drive for 20 minutes or more at a constant speed of 80 km/h (50 MPH) or more.
- Stop the vehicle and idle for one minute.
- Drive at 10 km/h (6 MPH) or more.
- Stop the vehicle and idle for ten minutes.

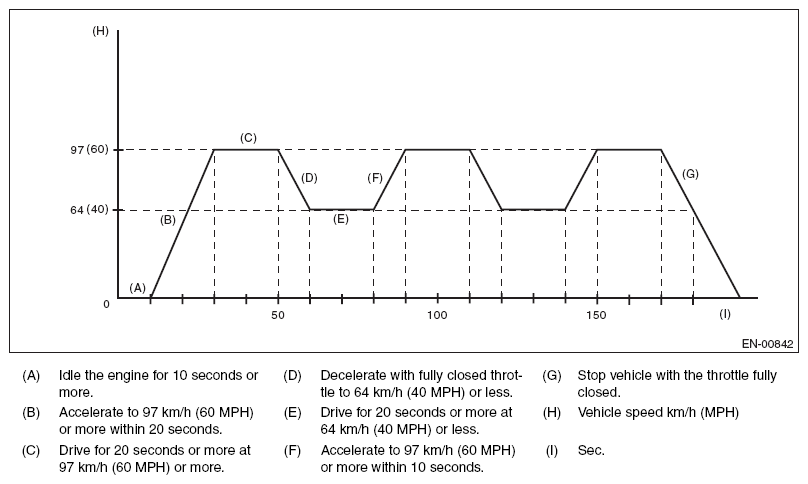

Drive according to the drive pattern described below.
- Make sure that the battery voltage is 10.9 V or more.
- Perform the Clear Memory Mode. < Refer to CLEAR MEMORY MODE . >
- Drive for approximately 30 L (7.9 US gal, 6.6 Imp gal) of fuel.NOTE:
- It is acceptable to drive the vehicle intermittently.
- Do not disconnect the battery terminals while diagnosing. (Data will be cleared by disconnecting the battery terminals.)
