2013 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE
Rear Oxygen Sensor: Removal
- Disconnect the ground cable from battery.
- Lift up the vehicle.
- Remove the under cover RH. < Refer to REMOVAL , Front Under Cover. >

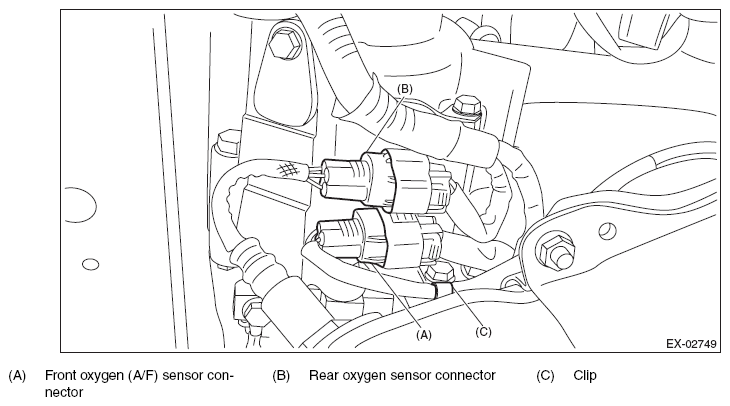

- Disconnect the rear oxygen sensor connector.
- Apply spray-type lubricant to the threaded portion of rear oxygen sensor, and leave it for one minute or more.
- Remove the rear oxygen sensor.CAUTION: When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.
