2013 Subaru Forester X, Automatic TransFACTORY OEM SERVICE PROCEDURE

Intake Manifold: Removal

  1. Release the fuel pressure. < Refer to RELEASING OF FUEL PRESSUREΒ , PROCEDURE, Fuel. >
  2. Disconnect the ground cable from battery.
    Fig 1: Connecting/Disconnecting Battery Ground Terminal
    G08570271Courtesy of SUBARU OF AMERICA, INC.
  3. Open the fuel filler lid and remove the fuel filler cap.
  4. Lift up the vehicle.
  5. Remove the under cover RH. < Refer to REMOVAL , Front Under Cover. >
  6. Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. < Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  7. Remove the clip (A) from the air intake boot.
  8. Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
  9. Loosen the clamp (C) which connects the air intake boot and throttle body.
    Fig 2: Identifying Air Intake Boot Clip And Clamps
    G07664986Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the air intake boot from the throttle body, and move it to the left side wheel apron.
    Fig 3: Identifying Air Intake Boot And Throttle Body
    G08570273Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect the preheater hose from throttle body.

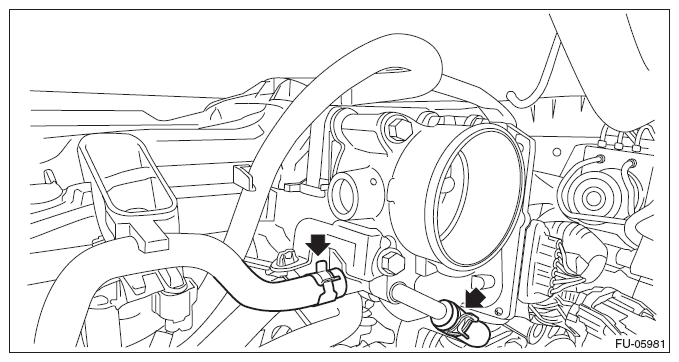

    Fig 4: Locating Preheater Hose Clips
    G08562566Courtesy of SUBARU OF AMERICA, INC.
  12. Disconnect the connector (A) from the purge control solenoid valve.
  13. Disconnect the clip (B) which holds the PCV hose.
  14. Remove the nut (C) which holds EGR pipe from the water pipe assembly.
  15. Loosen the bolt (D) which secures the EGR pipe to the intake manifold.

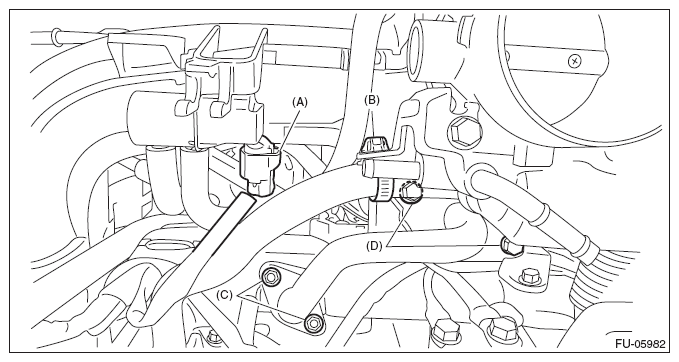

    Fig 5: Identifying Purge Control Solenoid Valve Connector, Clip, Nut And Bolt
    G08562567Courtesy of SUBARU OF AMERICA, INC.
  16. Disconnect the vacuum hose (A) from intake manifold.
  17. Disconnect the connector (B) from manifold absolute pressure sensor.
  18. Disconnect the connector (C) from the throttle position sensor.

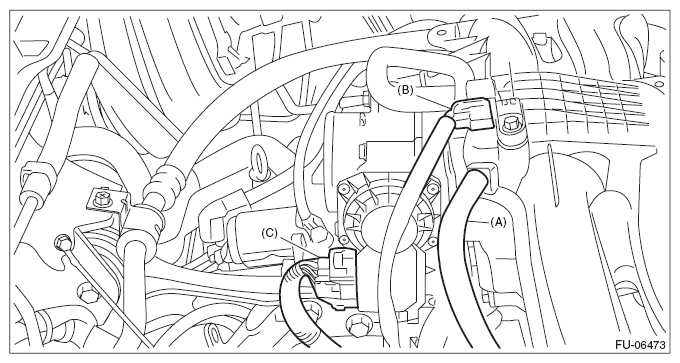

    Fig 6: Identifying Vacuum Hose, Manifold Absolute Pressure And Throttle Position Sensor Connector
    G08562568Courtesy of SUBARU OF AMERICA, INC.
  19. Disconnect the brake booster vacuum hose from the intake manifold.

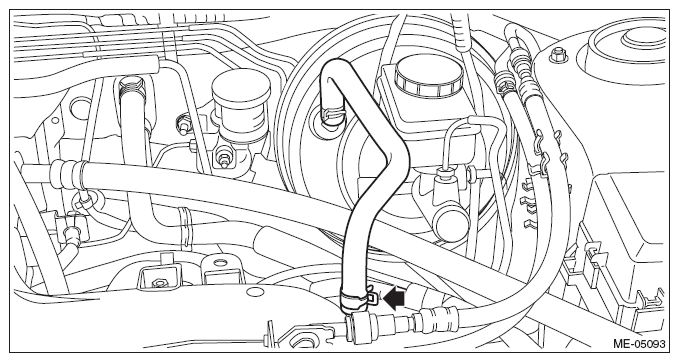

    Fig 7: Locating Brake Booster Vacuum Hose Clamp
    G08562569Courtesy of SUBARU OF AMERICA, INC.
  20. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) which holds the mass air flow and intake air temperature sensor harness.
  21. Remove the suction hose (C) from the air cleaner case (rear).
    Fig 8: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector, Clip And Suction Hose
    G08562570Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the air cleaner case (rear).
    Fig 9: Locating Air Cleaner Case Clamps
    G08562571Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the intake manifold protector RH.
    Fig 10: Locating Intake Manifold Protector Bolts (RH)
    G08562572Courtesy of SUBARU OF AMERICA, INC.
  24. Disconnect the fuel delivery pipe from the fuel pipe RH.
    NOTE: Disconnect the quick connector as shown in the figure.
