2013 Subaru BRZ Premium, Automatic TransFACTORY OEM SERVICE PROCEDURE

Throttle body assembly (FA20): Removal

Disconnection of battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Draining of coolant (SUBARU Super Coolant) (Refer to COOLANT (FA20) )
Removal of air cleaner case sub-assembly (Refer to V-BELT (FA20) )
Removal of throttle body assembly (with motor)
1. Disconnect the connector for the throttle body assembly (with motor).

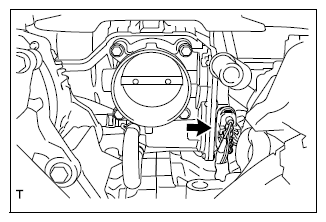

  Fig 1: Locating Throttle Body Assembly Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Slide 2 clamps, and disconnect the water bypass hose No. 2 and water bypass hose No. 3 from the throttle body assembly (with motor).

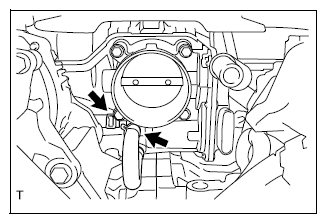

  Fig 2: Locating Water Bypass Hose Clamps
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove 4 bolts, and remove the throttle body assembly (with motor) from the intake manifold.
4. Remove the throttle body gasket from the intake manifold.

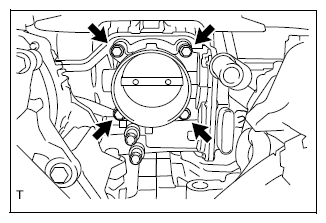

  Fig 3: Locating Throttle Body Assembly Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
