Injector driver (FA20): Installation
- Injector driver installationCAUTION:
- Do not apply any impact to the injector driver.
- When the mounting surface of injector drive is dirty, faulty grounding may be caused. Degrease and wash the mounting surfaces of injector driver and engine before installing the injector driver.
- Install the injector driver with the three bolts.
Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

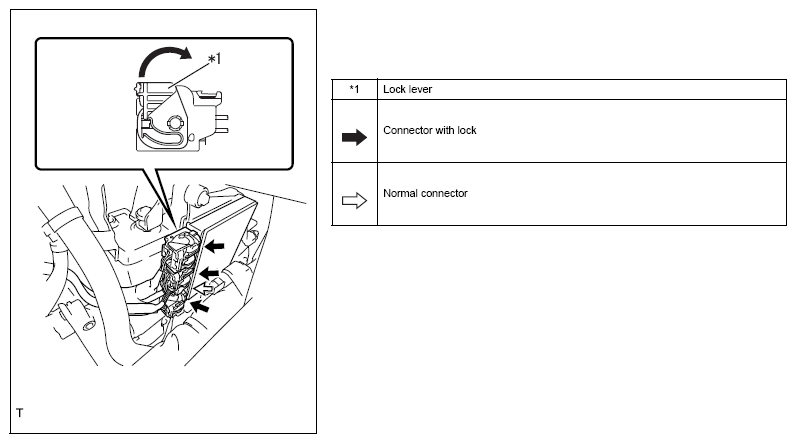

- Connect the three connectors with lock and normal connector to the injector driver and move the lock lever as shown in the figure to lock the three connectors with lock.
