2013 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE
Oxygen sensor (FA20): Removal
- Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
- Removal of front tire RH
- Removal of under cover front AL (Refer to REMOVAL )

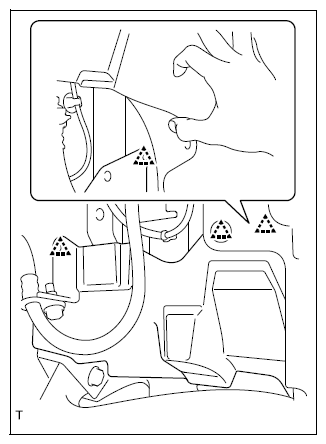

- Disconnection of under cover front side RH
- Remove 3 clips, and disconnect the under cover front side RH.

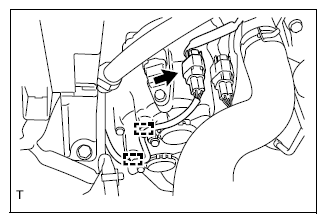

- Removal of oxygen sensor
- Disconnect the connector for oxygen sensor and the 2 clamps.
- Remove the oxygen sensor from the exhaust manifold.
