2012 Subaru Tribeca LimitedFACTORY OEM SERVICE PROCEDURE
Select Cable: Removal
- Set the vehicle on a lift.
- Shift the select lever to "N" range.
- Disconnect the ground cable from battery.
- Lift up the vehicle.
- Remove the front exhaust pipe, rear exhaust pipe and muffler. Refer to REMOVAL , Front Exhaust Pipe. Refer to REMOVAL , Rear Exhaust Pipe. Refer to REMOVAL , Muffler.
- Remove the heat shield cover.

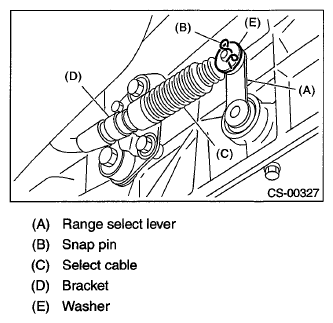

- Remove the snap pin and washer from range select lever.

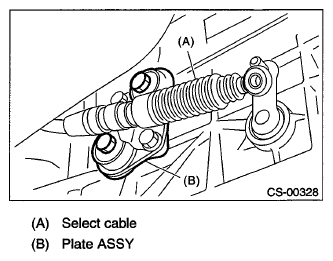

- Remove the plate assembly from the transmission case.

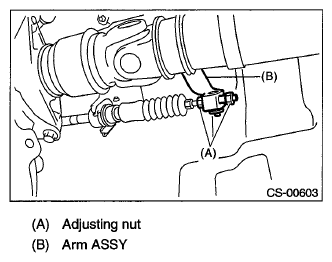

- Disconnect the cable from arm assembly.

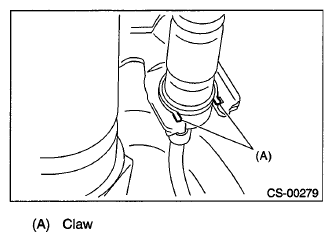

- Raise the pawl of clamp to remove the cable from bracket.
- Remove the select cable from plate assembly.
