2012 Subaru Outback RFACTORY OEM SERVICE PROCEDURE

Front Vehicle Speed Sensor: Installation

  1. Install the front vehicle speed sensor.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

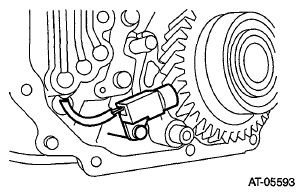

    Fig 1: Identifying Front Vehicle Speed Sensor
    G06652002Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the front vehicle speed sensor connector.
    Fig 2: Identifying Front Vehicle Speed Sensor Connector
    G05668774Courtesy of SUBARU OF AMERICA, INC.
  3. Apply proper amount of liquid gasket to the entire oil pan mating surface.

    Liquid gasket:

    THREE BOND 1217B (Part No. K0877YA020) or equivalent

    Fig 3: Identifying Oil Pan Mating Surface Liquid Gasket Applying Area
    G05022243Courtesy of SUBARU OF AMERICA, INC.
  4. Install the oil pan by equally tightening the bolts.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

  5. Install the center differential carrier. Refer to , INSTALLATION , Center Differential Carrier.
  6. Install the extension case.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    Fig 4: Identifying Extension Case
    G06652000Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the rear vehicle speed sensor connector.

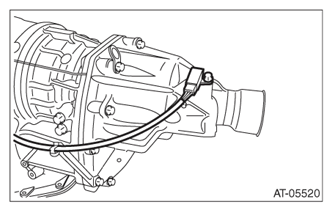

    Fig 5: Identifying Rear Vehicle Speed Sensor Connector
    G07914776Courtesy of SUBARU OF AMERICA, INC.
  8. Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
  9. Pour ATF from the oil charge pipe. Refer to , AUTOMATIC TRANSMISSION FLUID .
  10. Check the level and leaks of ATF. Refer to , INSPECTION , Automatic Transmission Fluid.
