Differential Case Assembly
- Install the washer, differential bevel gear and differential bevel pinion in the differential case (RH). Insert the pinion shaft.

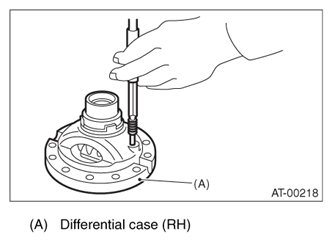

- Attach the straight pin in the reverse direction.
- Install the washer and differential bevel gear to differential case (LH). Put the differential case (LH) on the differential case (RH), and assemble the two differential cases.

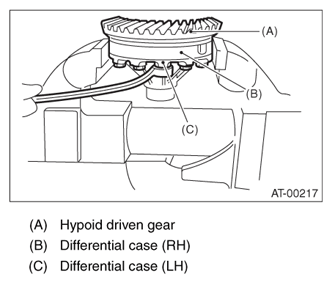

- Install the hypoid driven gear and secure by tightening the bolt.
Tightening torque:
70 N.m (7.1 kgf-m, 51.6 ft-lb)
- Measurement of backlash (Selection of washer)
- Install the SUBARU genuine axle shaft to differential case.
Part No. 38415AA070 Axle shaft
- Measure the gear backlash using ST1 and ST2, and then insert the ST2 through the access window of differential case.NOTE:
- Measure the backlash by applying a differential bevel pinion tooth between two differential bevel gear teeth.
- When measuring, fix the differential bevel pinion gear in place with a screwdriver covered with waste cloth, or a similar tool.
Standard:
0.13 - 0.18 mm (0.0051 - 0.0071 in)
ST1 498247001 MAGNET BASE
ST2 498247100 DIAL GAUGE
- Install the SUBARU genuine axle shaft to differential case.
- If the backlash is not within specification, select a washer from the table below.
Washer Part No. Thickness mm (in) 803038021 0.95 (0.037) 803038022 1.00 (0.039) 803038023 1.05 (0.041) - Using the ST, install the taper roller bearing.
ST 398487700 DRIFT
