Extension Case: Assembly
- Press-fit the oil seal using the ST and press.NOTE: Use a new oil seal.
ST 498057300 INSTALLER
- Press-fit the dust cover.

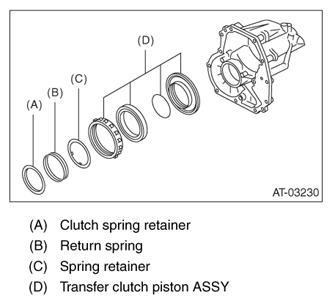

- Insert the transfer clutch assembly, spring retainer, return spring and clutch spring retainer.
- Using the ST and compressor, install the snap ring.
ST 18762AA000 COMPRESSOR SPECIAL TOOL
- Install the transfer clutch. Refer to , INSTALLATION , Transfer Clutch.
- Install the rear drive shaft.
