2012 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Operating Cylinder: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:

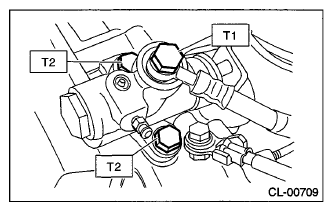

- The illustration below is suitable for every model. Perform the same procedures for the other models.
- Use a new gasket.
- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.
- Before installing the operating cylinder, apply grease to the contact point of the release lever and operating cylinder.
Grease
NICHIMOLY N-130 or equivalent
- Install in the reverse order of removal.
Tightening torque:
T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
T2: 37 N.m (3.8 kgf-m, 27.3 ft-lb)
