2012 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Operating Cylinder: Assembly
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The illustration shows a representing model. Perform the same procedures for the other models.
- During assembly, apply hydraulic oil to all parts.
Recommended clutch fluid:
New FMVSS No. 116 DOT3

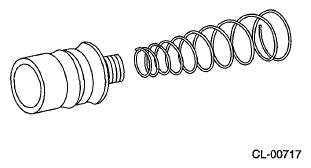

- Install the piston spring onto the piston.
- Insert piston to the operating cylinder.
- Install push rod to the boot.
- Install boot and push rod to the operating cylinder.
