Fuel Tank

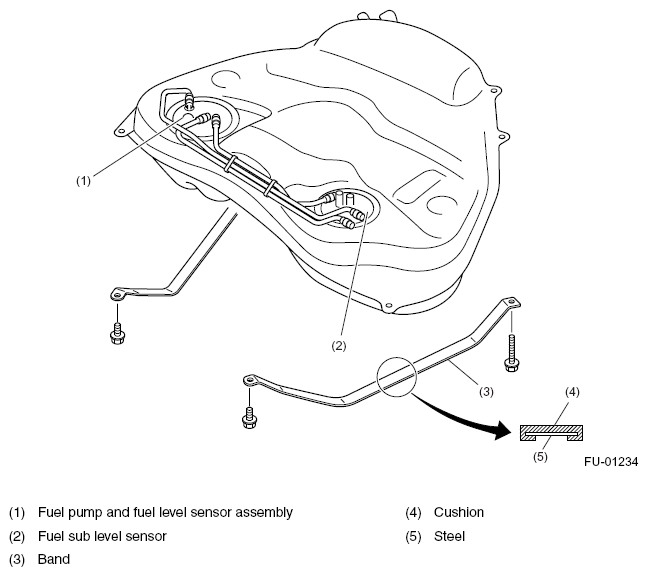

The fuel tank utilizes a two-compartment design to ensure sufficient capacity without interfering with the rear differential. It is provided with a suction jet pump (included in the fuel pump and fuel level sensor assembly) which transfers fuel from one compartment to the other.
Each compartment has an individual fuel level sensor. The fuel tank is located under the rear seat and secured with hold-down bands.
