2012 Subaru Outback RFACTORY OEM SERVICE PROCEDURE

Camshaft Position Sensor (Method With Oscilloscope)

Prepare an oscilloscope.
Remove the glove box lid assembly. Refer to GLOVE BOX .

Connect the probe to ECM connector.

Intake camshaft position sensor

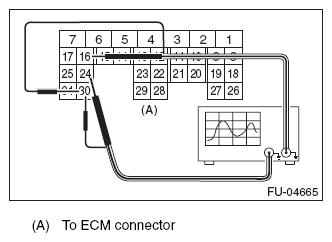

Fig 1: Connecting Probe To ECM Connector (Intake Camshaft Position Sensor)

Courtesy of SUBARU OF AMERICA, INC.

Camshaft position sensor	Terminal No.	Probe
RH	24	+
LH	16	+
RH and LH	30	-

Exhaust camshaft position sensor

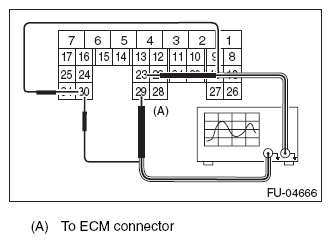

Fig 2: Connecting Probe To ECM Connector (Exhaust Camshaft Position Sensor)
Courtesy of SUBARU OF AMERICA, INC.

Camshaft position sensor	Terminal No.	Probe
RH	23	+
LH	29	+
RH and LH	30	-

Start the engine and let it idle.
Check that the pattern is the same as the waveform and voltage shown below.

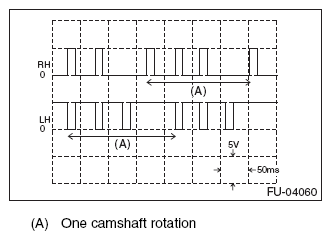

Fig 3: Camshaft Position Sensor Waveform
Courtesy of SUBARU OF AMERICA, INC.
After inspection, install the related parts in the reverse order of removal.
