Transmission Mounting System: Installation

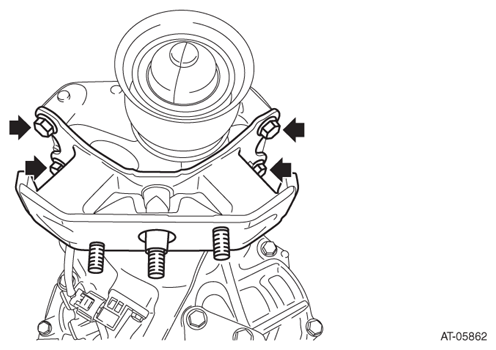

- Attach the rear cushion rubber to the transmission.
Tightening torque:
40 N.m (4.1 kgf-m, 29.5 ft-lb)

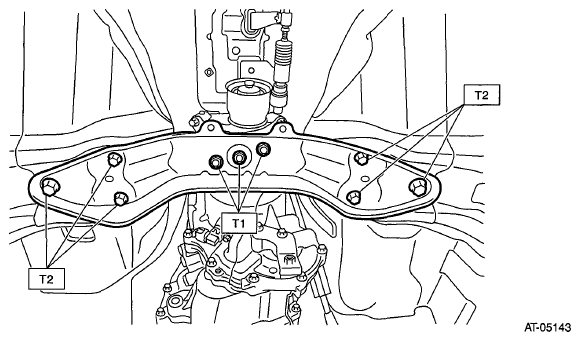

- Install the crossmember.
Tightening torque:
T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)
T2: 75 N.m (7.6 kgf-m, 55.3 ft-lb)
- Remove the transmission jack.
- Install the heat shield cover.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the center exhaust pipe. Refer to CENTER EXHAUST PIPE EX(H4SO)-7, INSTALLATION, Center Exhaust Pipe.
- Connect the battery ground terminal.
