Transmission Control Device: Installation

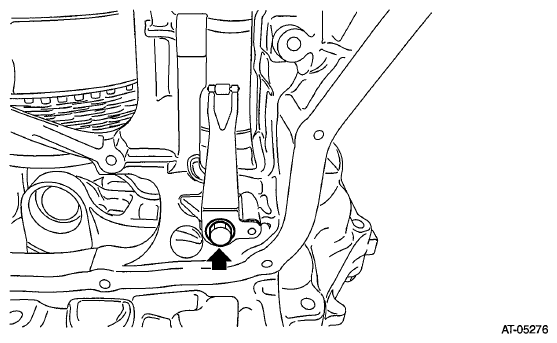

- Install the detent spring to the transmission case.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)

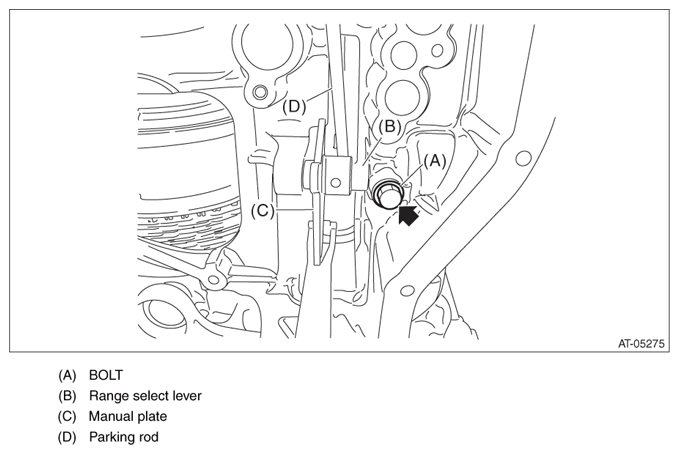

- Install the manual plate, parking rod, range select lever and bolt.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Install the spring pin.NOTE: Use new spring pin.
