Reverse Brake Assembly: Disassembly

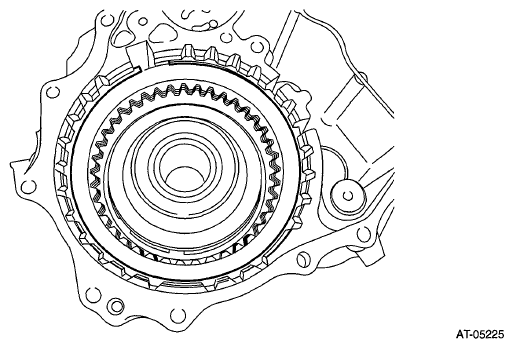

- Remove the snap ring.
- Remove the retaining plate, drive plate, driven plate and dish plate.
- Set the ST1, ST2 and ST3 to intermediate case.
ST1 18762AA000 COMPRESSOR SPECIAL TOOL
ST2 18763AA000 COMPRESSOR SHAFT
ST3 18765AA000 COMPRESSOR SUPPORT
- Compress the return spring using the set ST to remove the snap ring.

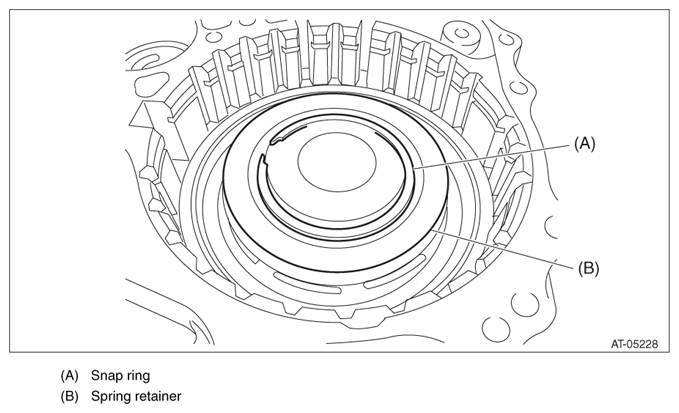

- Using the ST, remove the snap ring and spring retainer.
- Remove the return spring.
- Remove the reverse brake piston by blowing compressed air intermittently from intermediate case hole.
