2012 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE
Intermediate Case: Removal
- Remove the transmission assembly from vehicle body. Refer to , REMOVAL , Automatic Transmission Assembly.
- Remove the extension case. Refer to , REMOVAL , Extension Case.
- Remove the rear drive shaft. Refer to , REMOVAL , Rear Drive Shaft.
- Remove the transfer clutch assembly. Refer to , REMOVAL , Transfer Clutch.
- Remove the transfer reduction driven gear assembly. Refer to , REMOVAL , Transfer Reduction Driven Gear.

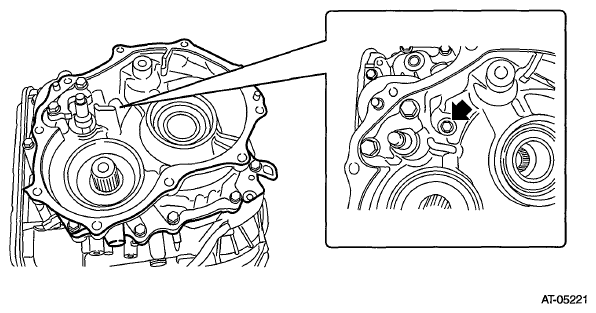

- Remove the intermediate case.

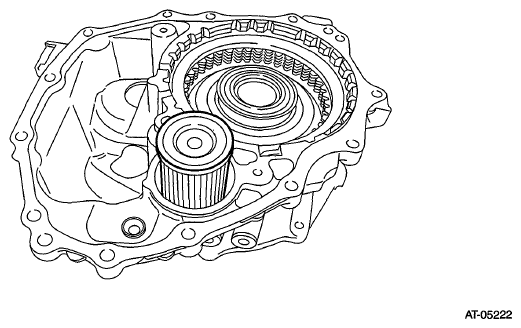

- Remove the CVTF filter.
- Remove the O-ring from the transmission case.
