2012 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE
Front Wheel Speed Sensor: Removal
CAUTION:
- Be sure to prevent water or oil from contacting the connector terminal of front wheel speed sensor. If adhesion occurs, replace with a new part.
- When removing front wheel speed sensor, CVTF may let out. If CVTF has leaked, adjust the CVTF level after installing the front wheel speed sensor.
- Lift up the vehicle.
- Clean the transmission exterior.
- Remove the harness connector from front wheel speed sensor.

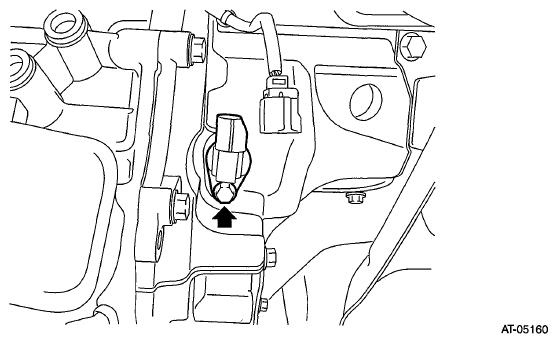

- Remove the front wheel speed sensor.
