2012 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Assembly: Installation

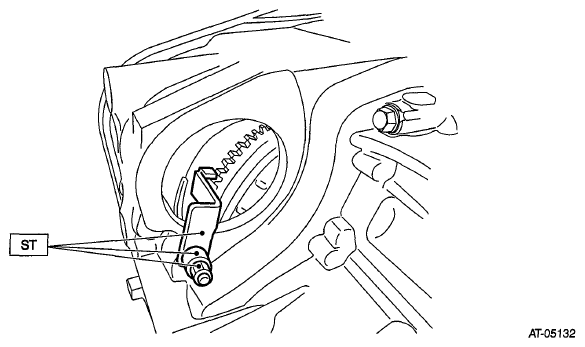

- Attach the ST to converter case.
ST 498277200 STOPPER SET
- When completely overhauling the transmission, refill approx. 10 l
(2.6 US qt, 8.8 Imp qt) of CVTF through the transmission right side plug, and install the plug.CAUTION: Always use specified CVTF or equivalent. Using other fluid than specified or equivalent will cause malfunction. Refer to , HYDRAULIC CONTROL AND LUBRICATION , SPECIFICATION, General Description.
