Knock Sensor: Installation

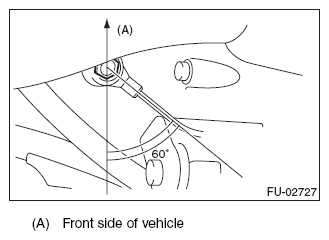

- Install the knock sensor to the cylinder block.NOTE: The portion of the knock sensor cord that is pulled out must be positioned at a 60° angle relative to the engine rear.
Tightening torque:
24 N.m (2.4 kgf-m, 17.7 ft-lb)
- Connect the knock sensor connector.
- Install the air intake boot assembly. Refer to AIR INTAKE BOOT .
- Connect the ground cable to battery.
