Front Oxygen (A/F) Sensor: Installation
- Before installing front oxygen (A/F) sensor, apply anti-seize compound only to the threaded portion of front oxygen (A/F) sensor to make the next removal easier.CAUTION: Never apply anti-seize compound to the protector of front oxygen (A/F) sensor.
Anti-seize compound:
NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent

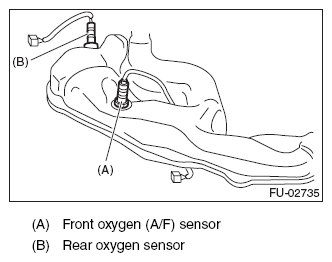

- Install the front oxygen (A/F) sensor.
Tightening torque:
21 N.m (2.1 kgf-m, 15.5 ft-lb)
- Install the under cover. Refer to FRONT UNDER COVER .
- Lower the vehicle.

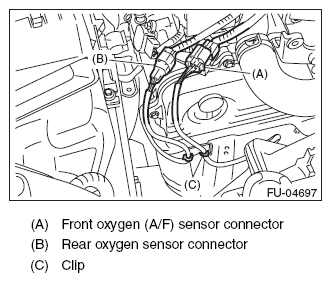

- Connect the front oxygen (A/F) sensor connector, and secure the front oxygen (A/F) sensor harness by using the clip.
- Install the air intake duct. Refer to AIR INTAKE DUCT .

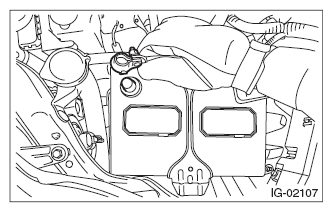

- Connect the battery ground terminal.
