2012 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE

Crankshaft Position Sensor: Removal

Disconnect the ground cable from battery.

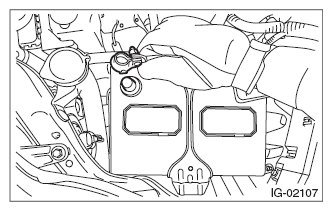

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures crankshaft position sensor to oil pump.

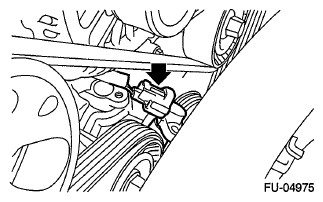

Fig 2: Locating Crankshaft Position Sensor Securing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the crankshaft position sensor, and disconnect the connector from the crankshaft position sensor.

Fig 3: Locating Crankshaft Position Sensor Connector

Courtesy of SUBARU OF AMERICA, INC.
