2012 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Removal
- Disconnect the ground cable from battery.

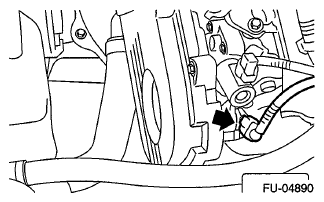

- Disconnect the connector from camshaft position sensor.
- Remove the ignition coil. (LH side only) Refer to IGNITION COIL .
- Remove the bolt which secures camshaft position sensor to camshaft position sensor support.
- Remove the bolt which secures camshaft position sensor support to camshaft cap LH.
- Remove the camshaft position sensor and the camshaft position sensor support as a unit.NOTE: Slide in the arrowed direction until the camshaft position sensor contacts the rocker cover LH.
