2012 Subaru Outback F4-2.5L SOHCFACTORY OEM SERVICE PROCEDURE
Oil Temperature Sensor For ECM: Testing and Inspection
Oil Temperature Sensor
INSPECTION
1. Check that the oil temperature sensor has no deformation, cracks or other damages.

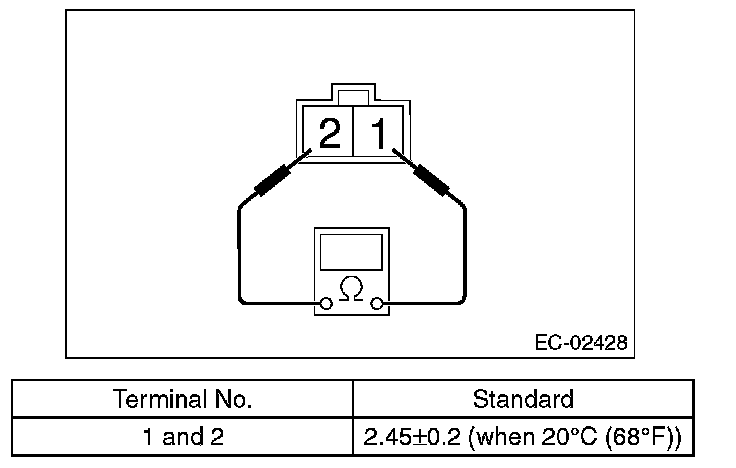

2. Check the resistance between the oil temperature sensor terminals.
INSPECTION
1. Check that the oil temperature sensor has no deformation, cracks or other damages.
2. Check the resistance between the oil temperature sensor terminals.
