2012 Subaru Outback F4-2.5L SOHCFACTORY OEM SERVICE PROCEDURE
Exploded Views
Compartment

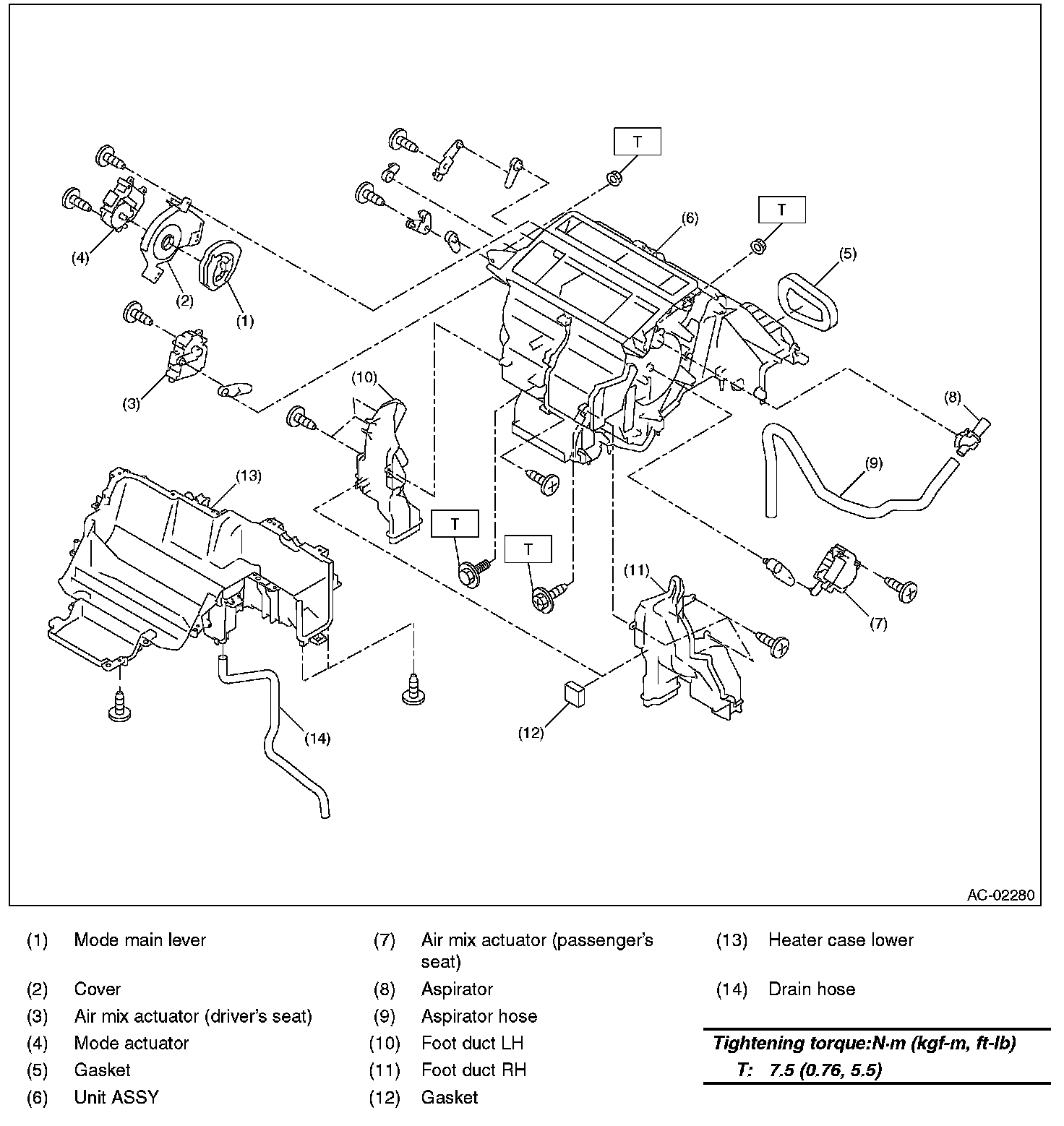

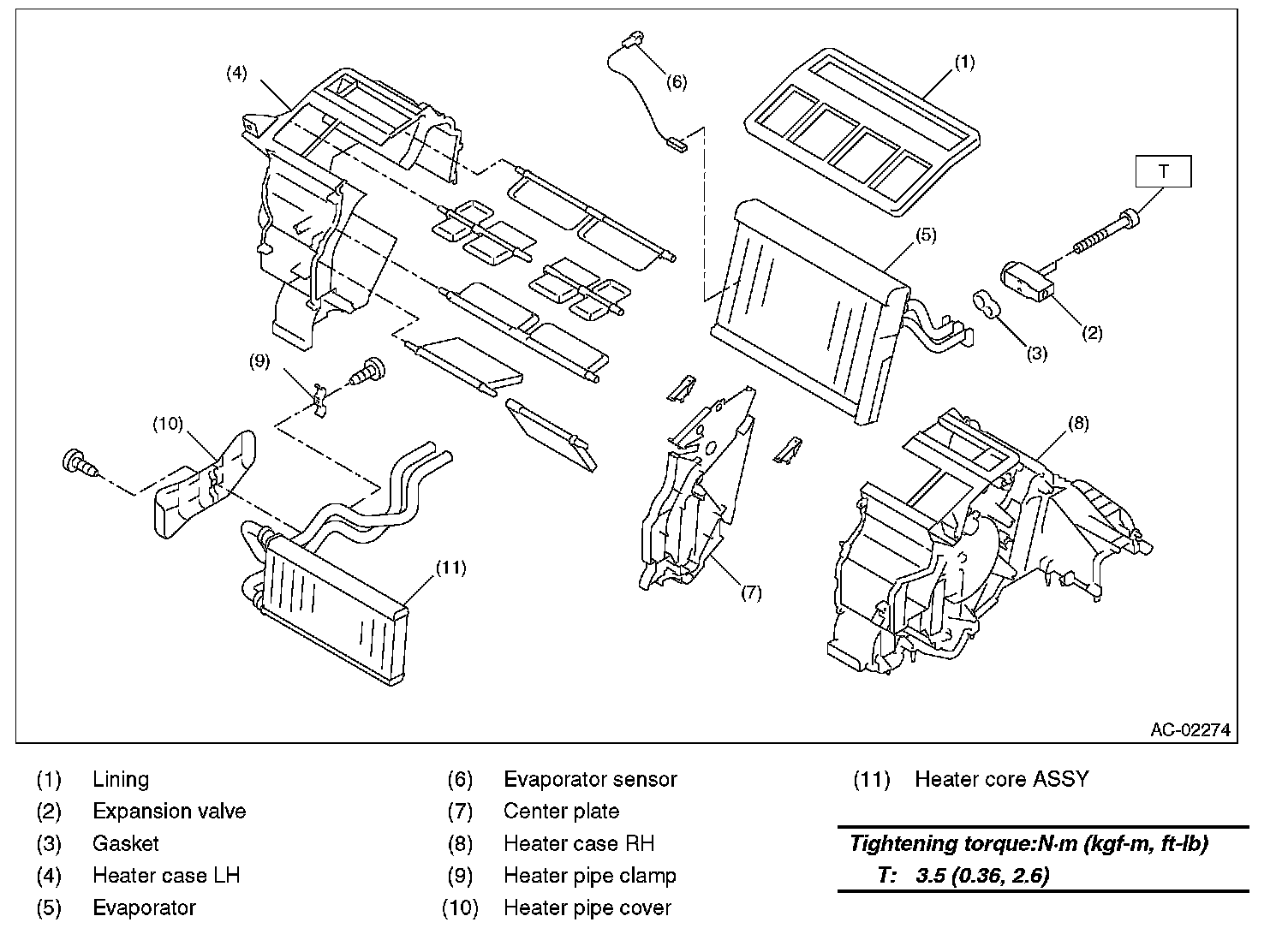

1. HEATER COOLING UNIT
2. BLOWER MOTOR UNIT
3. CONTROL MODULE
- AUTO A/C MODEL
- MANUAL A/C MODEL
4. AIR CONDITIONING UNIT
5. COMPRESSOR
6. HEATER DUCT
1. HEATER COOLING UNIT
2. BLOWER MOTOR UNIT
3. CONTROL MODULE
- AUTO A/C MODEL
- MANUAL A/C MODEL
4. AIR CONDITIONING UNIT
5. COMPRESSOR
6. HEATER DUCT
