Programming and Relearning

ADJUSTMENT

CAUTION:
- When the rearview mirror (RCD) is removed or replaced, perform calibration and zone setting by following the procedures below.
- The zone setting of the vehicle is set to zone "8" at factory setting.

1. CALIBRATION

1. Before performing calibration, check the following items.
- There is a sufficient distance from a big metal object or a building.
- Vehicle is parked on a level surface.
- The switch of unnecessary accessories (A/C system, audio system and lighting system) is turned to "OFF".
- All doors are closed.

2. Start the engine.

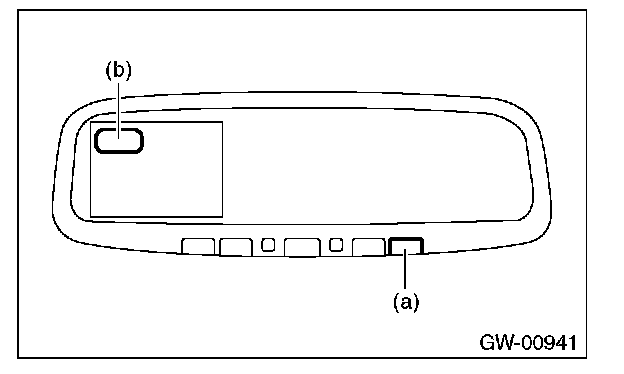

3. Hold down the multi-function button (a) for six to nine seconds. Once calibration mode starts, "C" is displayed on the screen (b).







4. Drive the vehicle in a circle until the display of "C" on the screen goes off. (Approx. two or three times)
5. Display the compass to check the operation.

CAUTION: The mirror may not be able to perform the reading correctly. Therefore, when the compass operates only to the specific direction, repeat steps 3) to 5).

2. ZONE SETTING

1. Refer to the compass zone map to check the zone number of area you use the vehicle.
Compass zone map







2. Turn the ignition switch to ON.
3. Hold down the multi-function button (a) for three to six seconds. Once zone setting mode starts, the zone number that is already set is displayed on the screen (b).







4. Push the multi-function button repeatedly until the zone number you want to set is displayed.

NOTE: If you leave the multi-function button for three seconds, the zone setting mode is completed.
