Front Suspension: General Description: Specification
| Tire size | P205/60R16 P215/50R17 |
P225/50R17 225/45R18 |
P225/60R17 P215/70R16 |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Front | Wheel arch height | 403 (15.9) | 395 (15.6) | 469 (18.5) | |||||
| (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) | mm (in) | ||||||||
| Camber (Tolerance: ±0°45' Differences between RH and LH: 45' or less) |
-0°30' | -0°15' | 0°00' | ||||||
| Caster (Referential Value) | 5°55' | 6°00' | 5°05' | ||||||
| Steering angle (Tolerance: ±1.5°) | Inner wheel | 37.6° | 37.4° | 38.4° | |||||
| Outer wheel | 33.3° | 33.0° | 34.1° | ||||||
| Toe-in | mm (in) | 0±3 (0±0.12) Toe angle (sum of both wheels): 0°±0°15' | |||||||
| Kingpin angle (Referential Value) | 14°00' | 14°15' | 12°20' | ||||||
| Rear | Wheel arch height | 392 (15.4) | 387 (15.2) | 474 (18.7) | |||||
| (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) | mm (in) | ||||||||
| Camber (Tolerance: ±0°45' Differences between RH and LH: 45' or less) |
-1°00' | -1°10' | 0°00' | ||||||
| Toe-in | mm (in) | (2) | (1) | ||||||
| Thrust angle (Tolerance: ±0°30') | 0° | ||||||||
2±3 mm (0.08 - 0.12 in) Toe angle (sum of both wheels): 0°10'±0°15'
0±3 mm (0±0.12 in) Toe angle (sum of both wheels): 0°±0°15' |
|||||||||
- Front and rear toe-in and front camber can be adjusted. Adjust if the toe-in or camber tolerance exceeds specifications.
- Other items indicated in the specifications is not equipped with adjustment mechanisms. If other items exceed specifications, check the suspension parts and connections for deformation. If defective, replace with new parts.

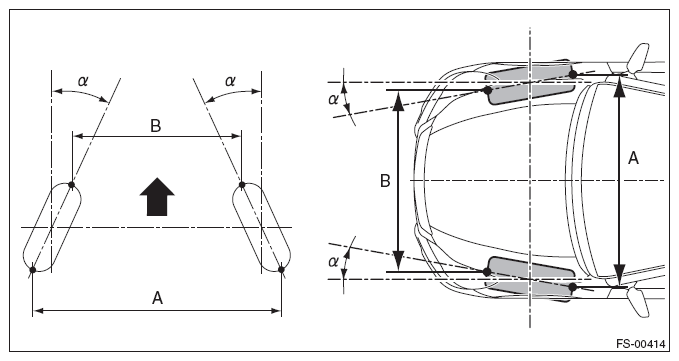

A - B = Positive: Toe-in, Negative: Toe-out
α = Individual toe angles
