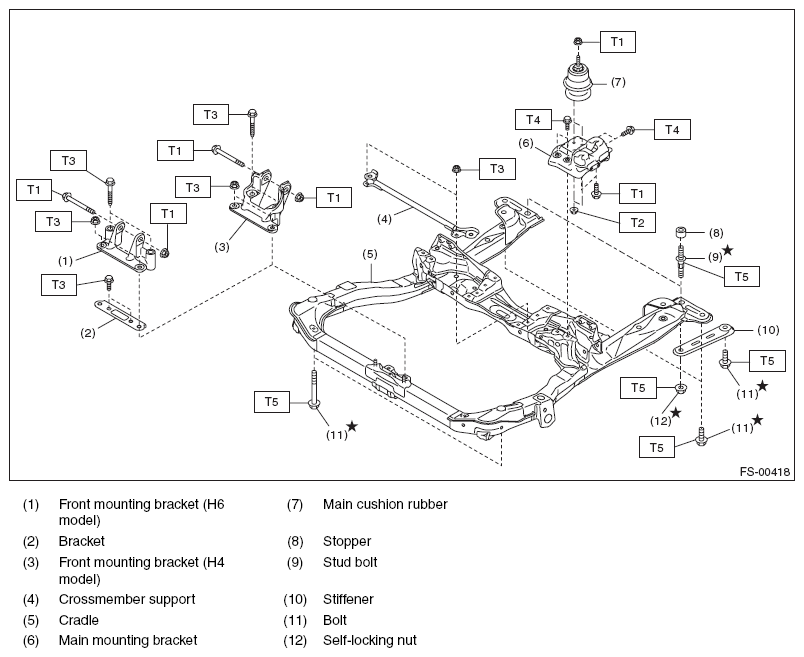

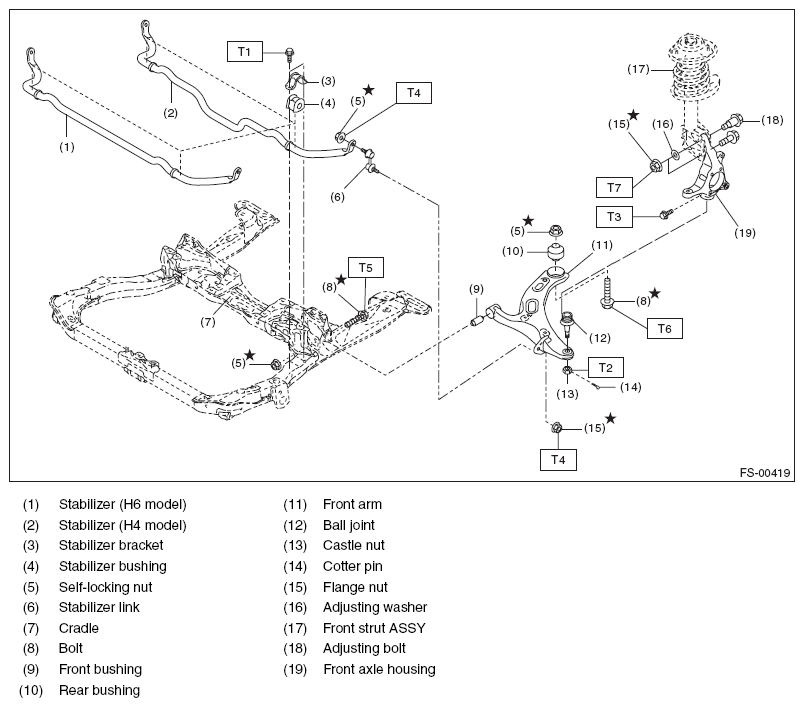

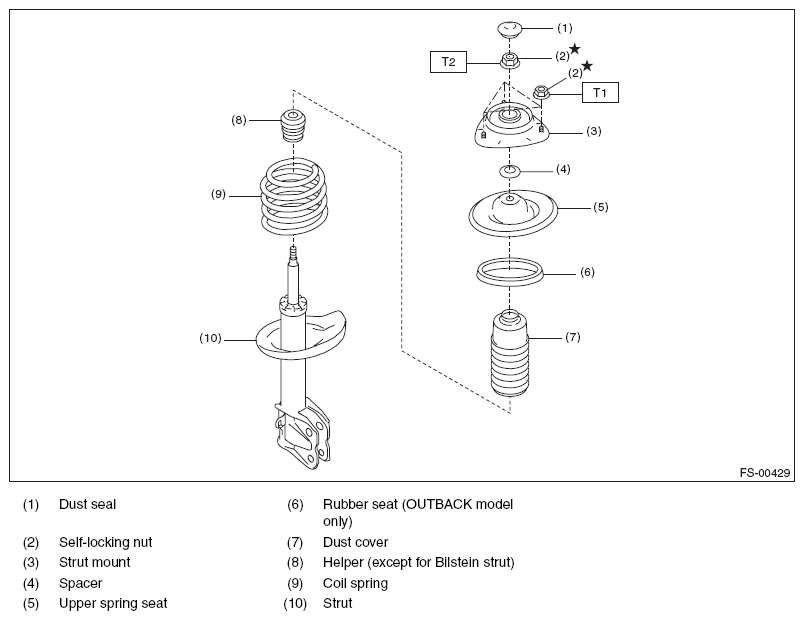

Components With Torque Specifications
Tightening torque: N.m (kgf-m, ft-lb)
T1: 45 (4.59, 33.2)
T2: 55 (5.61, 40.6)
T3: 60 (6.12, 44.3)
T4: 65 (6.63, 47.9)
T5: 75 (7.65, 55.3)
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.55, 18.4)
T2: 39 (3.98, 28.8)
T3: 50 (5.10, 36.9)
T4: 60 (6.12, 44.3)
T5: 95 (9.69, 70.1)
T6: 140 (14.28, 103.3)
T7: 155 (15.81, 114.3)
Tightening torque: N.m (kgf-m, ft-lb)
T1: 20 (2.04, 14.8)
T2: 55 (5.61, 40.6)
