2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Air Intake Boot: Installation
WARNING: This page is about a different variant/trim than selected.
- Install the air intake boot assembly and connect the blow-by hose.

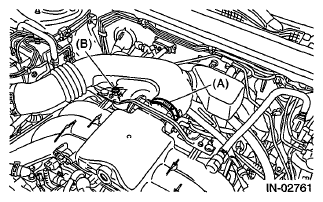

- Tighten the clamp (A) which connects the air intake boot assembly and throttle body.
- Tighten the bolt (B) which secures the air intake boot assembly and collector cover bracket.
Tightening torque:
Clamp (A)
3 N.m (0.3 kgf-m, 2.2 ft-lb)
Bolt (B)
6.5 N.m (0.7 kgf-m, 4.8 ft-lb)
- Tighten the clamp which connects the air intake boot assembly and air cleaner case (rear).
Tightening torque:
3 N.m (0.3 kgf-m, 2.2 ft-lb)
- Install the collector cover.
