Check Specified Position
- If the stop light switch does not operate properly (or if it is not secured at the specified position), replace with a new part.
Specified position L:
2 mm (0.079 in)

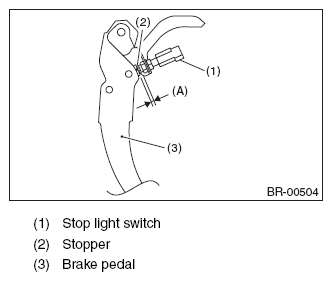

- Measure the clearance between the threaded end of the stop light switch and the stopper.CAUTION: Be careful not to rotate the stop light switch.
Stop light switch clearance A:
0.8 mm (0.031 in)
- If it is not within the specification, adjust it by adjusting the position of the stop light switch.
