2012 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Rear Disc Brake Assembly: Disassembly
WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the piston boot.

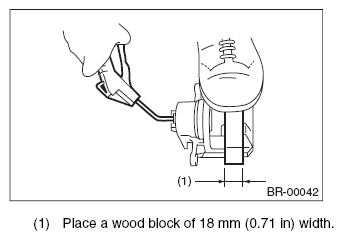

- Place a wooden block in the caliper body as shown in the figure to prevent the piston from jumping out and being damaged.
- Gradually apply compressed air via the brake hose installation hole to push the piston out.
- Remove the piston seal from caliper body cylinder.CAUTION: Do not damage the cylinder and piston seal groove.
